Feature:

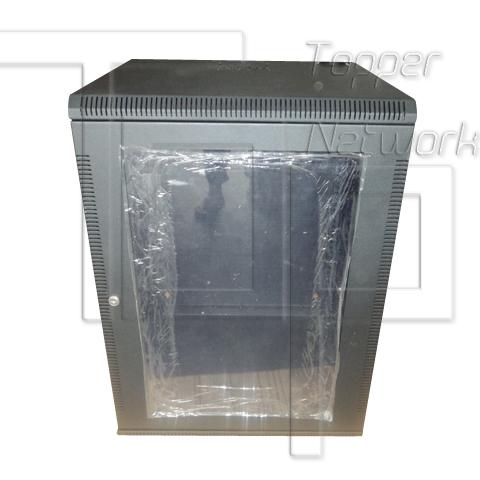

◆Frame structure with precise craftsmanship, double -section wall mount cabinet;
◆According to 19” international standard, mounting post with adjustable design to be suitable for different equipments with different depths;
◆Synthetic glass front door with rotatable lock, turning degree can be over 180°;
◆ventilated design in the front door and the side panels for heat-cooling;
◆Cable entry on the top cover, bottom plate and back panel with knock-out plate;
◆Fan hole available on the top cover，fan installing depends;
◆Fixing the back panel directly and easily onto the wall;
◆Various heights from 6u to 22u ;
◆Flat package for easily carrying and saving container space, assembled package convenient for customers, they are optional.
Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1,DIN41494;PART7,GB/3047.2-92 standard
Material:
SPCC cold rolled steel
Static Loading Capacity:
60kg
Degree of Protection:
IP20
Thickness of Steel：
Mounting post 1.5mm,frame 1.2mm,back panel 1.2mm, front door frame 1.2mm,others 1.0mm
Surface treatment:
Degreasing, pickling, phosphoric treatment, powder spraying
Colors option:
RAL9004/9005 BLACK
RAL7035 COMPUTER GRAY
RAL9010 CREAM WHITE
