Feature：
◆Modern stylish appearance and exquisite design，firm construction and precise craftsmanship;
◆According to 19” international standard, mounting post with adjustable design to be suitable for different equipments with different depths;

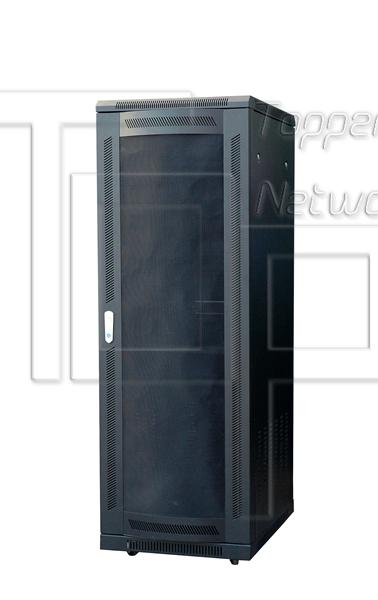

◆Arc meshed front door fully ventilation with rotatable lock, turning degree can be over 180;
◆Removable side and rear panels, easy to install,ventilated design for heat-cooling;
◆High density perforated rear door with double section provides convenience and good ventilation, it helps to keep the stability of the equipment;
◆Fan holes are available, fan quantity depends;
◆Adjustable cable entrances in the bottom with panels;
◆Adjustable feet and universal castors in the bottom are available;
◆Fixed shelf ,sliding shelf, keyboard shelf, cable manager, PDU and other accessories are on your option;
◆Various heights from 16u to 47u with 3 standard depths of 600mm,800mm,1000mm;
◆Flat package for easily carrying and saving container space, assembled package convenient for customers, they are optional.
Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1,DIN41494;PART7,GB/3047.2-92 standard
Material:
SPCC cold rolled steel
Static Loading Capacity:
650kg
Degree of Protection:
IP20
Thickness of Steel：
Mounting post 2.0mm,frame 1.5mm,bottom 1.5mm, jointing plate 1.2mm,front door frame 1.2mm,others 1.0mm
Surface treatment:
Degreasing, pickling, phosphoric treatment, powder spraying
Colors option:
RAL9004/9005 BLACK
RAL7035 COMPUTER GRAY
RAL9010 CREAM WHITE
Main Specification (mm)
|
Model No.
|
U
|
width*depth*height(mm)
|
Model No.
|
U
|
width*depth*height(mm)
|
|
TPFM-026616
|
16u
|
600*600*875
|
TPFM-028816
|
16u
|
800*800*875
|
|
TPFM -026620
|
20u
|
600*600*1062
|
TPFM -028820
|
20u
|
800*800*1062
|
|
TPFM -026625
|
25u
|
600*600*1285
|
TPFM -028825
|
25u
|
800*800*1285
|
|
TPFM -026630
|
30u
|
600*600*1507
|
TPFM -028830
|
30u
|
800*800*1507
|
|
TPFM -026635
|
35u
|
600*600*1729
|
TPFM -028835
|
35u
|
800*800*1729
|
|
TPFM -026642
|
42u
|
600*600*2035
|
TPFM -028842
|
42u
|
800*800*2035
|
|
TPFM -026646
|
46u
|
600*600*2215
|
TPFM -028846
|
46u
|
800*800*2215
|
|
|
|
|
|
|
|
|
TPFM -026820
|
20u
|
600*800*1062
|
TPFM -028120
|
20u
|
800*1000*1062
|
|
TPFM -026825
|
25u
|
600*800*1285
|
TPFM -028125
|
25u
|
800*1000*1285
|
|
TPFM -026830
|
30u
|
600*800*1507
|
TPFM -028130
|
30u
|
800*1000*1507
|
|
TPFM -026835
|
35u
|
600*800*1729
|
TPFM -028135
|
35u
|
800*1000*1729
|
|
TPFM- 026840
|
40u
|
600*800*1951
|
TPFM-028140
|
40u
|
800*1000*1951
|
|
TPFM -026842
|
42u
|
600*800*2040
|
TPFM -028142
|
42u
|
800*1000*2040
|
|
TPFM -026846
|
46u
|
600*800*2218
|
TPFM -028146
|
46u
|
800*1000*2218
|
|
|
|
|
|
|
|
|
TPFM -026125
|
25u
|
600*1000*1285
|
TPFM-026140
|
40u
|
600*1000*1951
|
|
TPFM-026130
|
30u
|
600*1000*1507
|
TPFM -026142
|
42u
|
600*1000*2040
|
|
TPFM -026135
|
35u
|
600*1000*1729
|
TPFM -026146
|
46u
|
600*1000*2218
|
